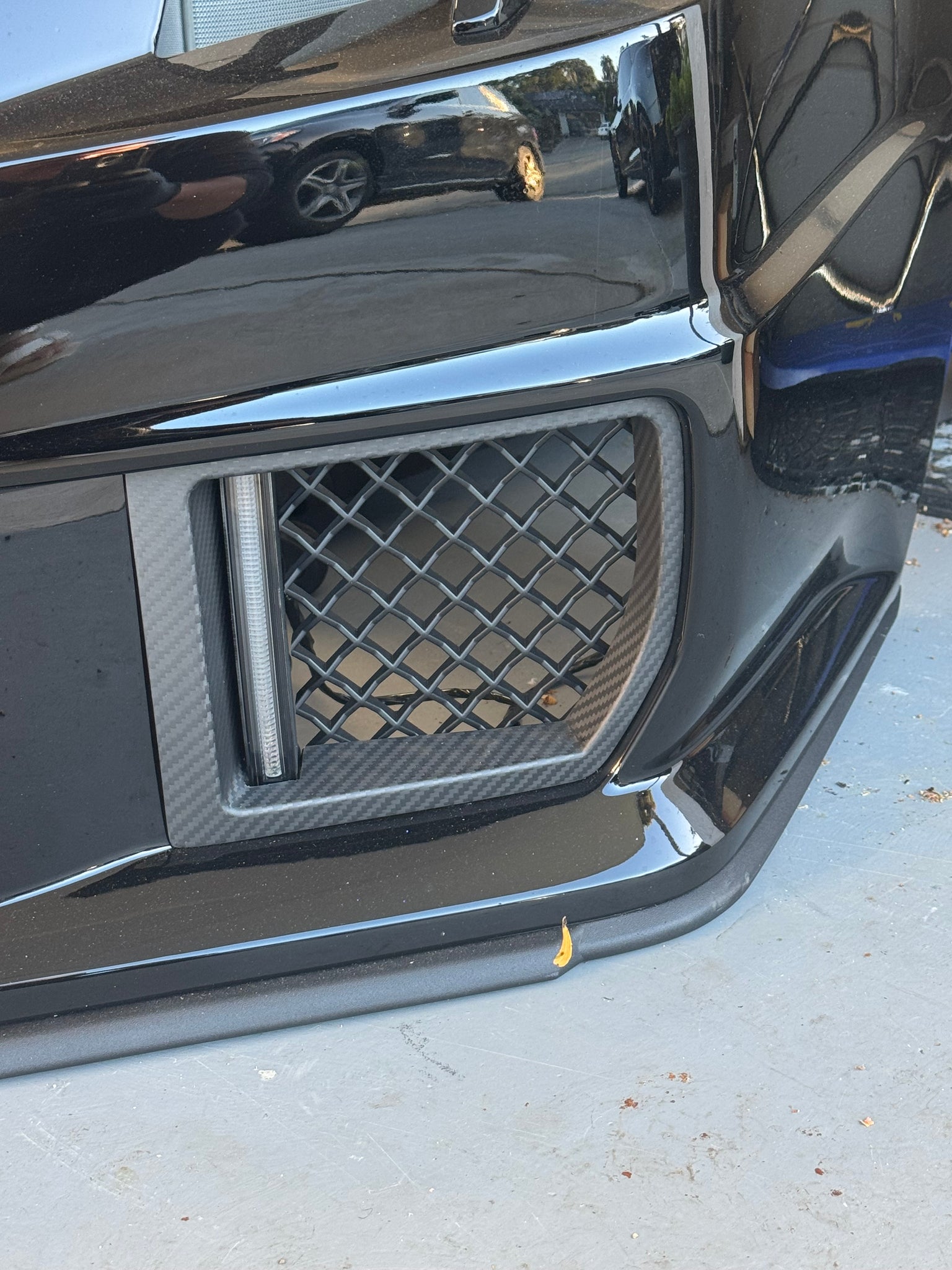

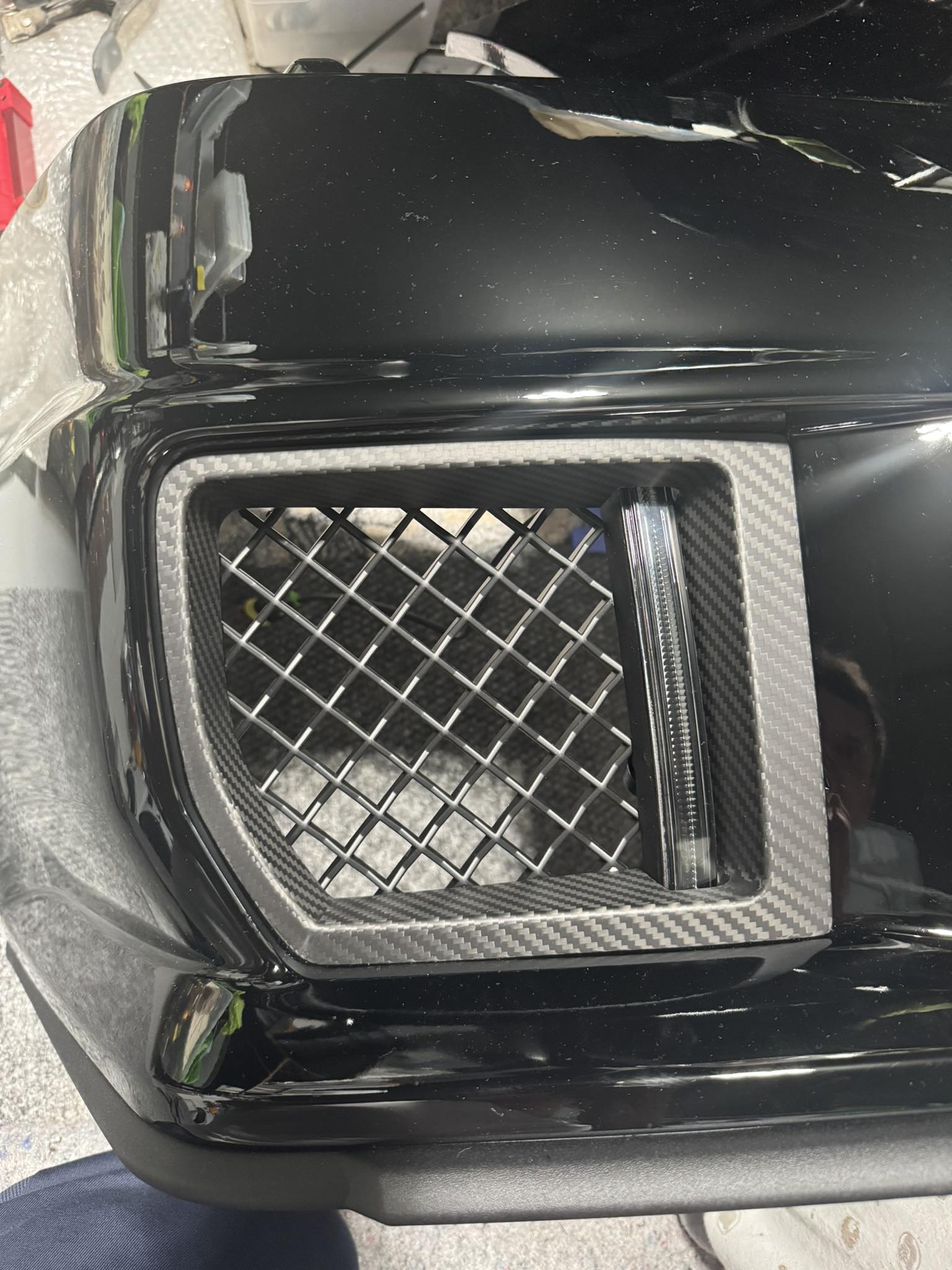

Cadillac CTS-V2 2009-2013 Full Dry Carbon Fiber Replacement Fog Lamp Housings
Retail Price
$399 Carbon Fiber Housings only
$389 DRL LED system
The wait is over. After so many customers asked us to bring back and fix the issues with the failed D3 fog lamp delete kits. We decided to make this project right from scratch. Bumper was 3D scanned and this project was designed from the ground up.
Available in Matte or Glossy Finish.
We offer the Brabus Style LED bars that are one of the best quality DRL systems money can buy.
Installation PDF Guide will be provided. Custom work requires to cut out the factory bumper section and remove the bumper.
Fitment Years: 2009, 09, 2010, 10, 2011, 11, 2012, 12, 2013, 13, 2014, 14, 2015, 15
Models: Cadillac CTS V, CTS-V, V2, Coupe, Sedan, & Wagon
2009 - 2015 Cadillac CTS-V V2 ( Will not fit a CTS base model front bumper )
Cadillac CTS-V CTSV Fog Light housings buckets. Carbon Fiber Fog Light Covers
2009-2015 Cadillac CTS-V V2 - Carbon Fiber Fog Light Bezels / Covers.
Manufactured by 3K Twill Weave Real Carbon Fiber
Beautifully maximizes the aesthetic attributes of your CTS-V
Compatible with Cadillac CTS-V V2 models only
Mesh Cover is not included.
Please check out this video who uses these DRL system ... VIDEO
What is made of?
All started with a full 3D bumper scan. We went with most expensive route making our housings using Pre Preg Dry Carbon Fiber with highest-performing and most durable clear coat professional-grade 2K (two-part) polyurethane.
Why are these LED bars so special?
Brabus uses these LED bars in Europe and it's Mercedes Benz approved, because Brabus is their authorized partner that does not void the MB warranty. Also same LED units are used by Pagani Huayra.
What they are?

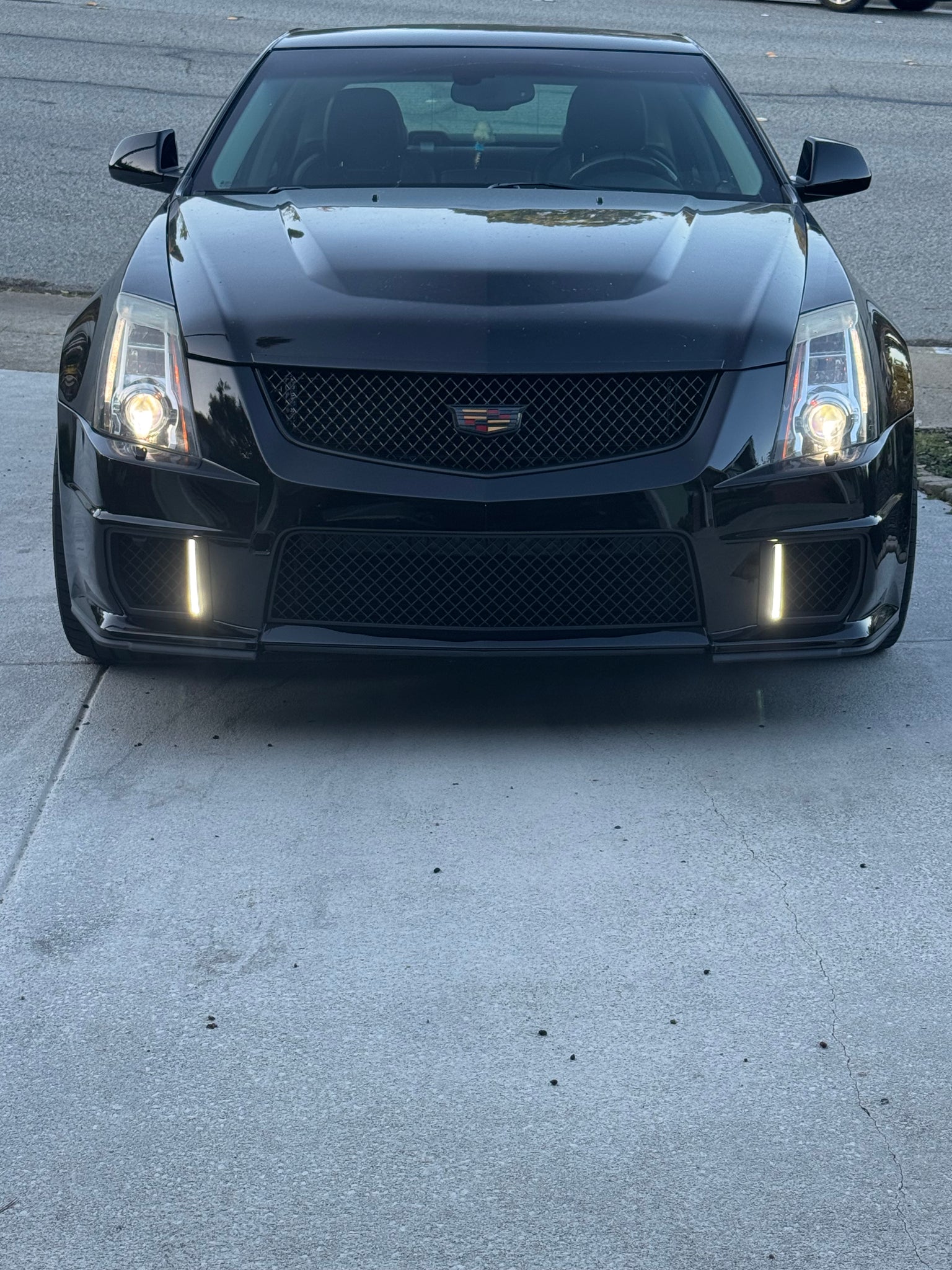

This kit is designed as a Day Time Running Lights not as fog lamps. They provide a large amount of glare and they are very bright during the day and night. If you are looking for a maximum light - driving lights, then we suggest to use your factory lamps with xenon system. If you are looking for a way to add aggressive classy look yet keeping the car OEM looking this is the product.
Functionality:
In order to comply with DOT and SAE standards these DRL bars have to be dimmable. There is a second power wire located on the wiring harness that can be wired to a low beam. Once the low beam turns on, the LEDs will dim by 50% Also it is possible to wire into the turn signal to have the units dim so the turn signal is much more noticeable.
Connection – We privide Fog Lamp Connectors to plug into the factory connectors for the stock fog light harness. Assembly includes all necessary connectors, rubber seals, and pigtails for a plug and play install. No error codes, no flickering, hyper-flashing, or radio interference. Fully Control using your factory fog lamp switch. No need to run any wires or harnesses.
Styles:
Bar (Solid Line) Black
What’s Included (If Adding LED option)
- LED BARS: (Driver Side & Passenger Side)
- Wiring: Plug and Play into your OEM fog lamps harness
- Brackets: (Driver Side & Passenger Side)
- Warranty: 2 Years
- Guide: General Installation Guide & Tech Support Available
Compatibility
- Cadillac CTS-V: or V Style bumpers (09-14)
- Trim: V
- Wiring: Plug and Play
- Carbon Fiber Installation requires trimming bumper
Tech Specs
- Lens Material: Glass, Black Housings
- Frame Construction: Metal
- Light Source: Philips LED
- LED Optics: Pure White Color 5000-5500K
- Factory like textured finish
Weather Rating:
All our products meet the IP international protection codes IP69K and IP67 respectively classifying them as water and dust proof to the extent they are high temperature washdown safe and submersible.
Radio Noise:
Electronic components are to be found everywhere in vehicles today and these often sensitive components must be kept free of electromagnetic interference. All LightWurkz® lights meet EMC CISPR level 5 which is higher than the most commonly required automotive standards.
Environment tests:
Since its foundation in 1905 SAE International has developed engineering standards that have been recognized and adopted globally. This LED DRL Unit meets SAE J2139 that defines environment standards and tests for vehicle lighting systems.
Warranty:
We have confidence in the reliability of our products, they come with a 2 year guarantee. You have further assurance that a LightWurkz® products will not let you down. This applies only to internal damage, not the damage caused by normal wear and tear such as broken glass. We recommend to apply clear film to protect the glass lenses from the rock chips.
Installation
Bumper removal is required.
Engineered in California
